Fabric changes character before a garment is even cut. The same fibre can feel crisp, soft, structured or glossy depending on how the yarns are interlaced, which is why understanding fabric weave types makes shopping and sewing far easier. In this guide, I break down the core weave structures, what they look like, where they work best, and the trade-offs that matter in real life.
What the weave changes before fibre and finish get involved
- Plain weave is the simplest and most stable structure, so it works well when you want control and durability.
- Twill uses offset diagonal floats, which usually adds drape, strength and a more forgiving surface.
- Satin gives a smooth, lustrous face, but it is easier to snag and scuff than the other basic weaves.
- Basket, rib and leno structures are useful when texture, openness or a specific hand feel matters.
- The best choice depends less on labels and more on drape, abrasion, fray risk and how the fabric will be worn.
The three weave families that set the baseline
I start here because almost every woven cloth can be understood as a variation of one of three families: plain, twill or satin. A weave is the over-and-under rhythm of warp and weft threads; it is different from fibre content, and it is different from knit construction. That distinction matters because a cotton satin, a silk satin and a polyester satin share the same weave logic but behave differently once fibre and finish enter the picture.

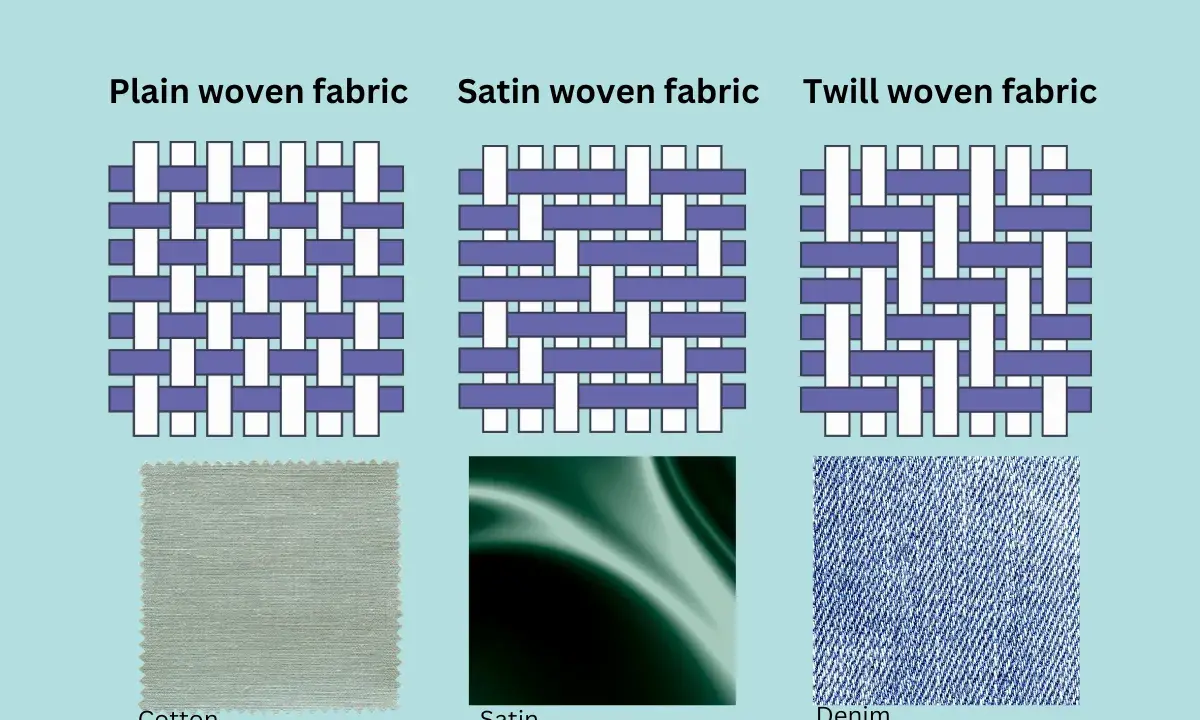

The table below is the fastest way to read the fundamentals. Once you can separate these three, the rest of the weave map becomes much easier to follow.
| Weave family | Interlacing pattern | What it usually feels like | Best at | Main trade-off |
|---|---|---|---|---|
| Plain weave | 1/1 over-under rhythm, with each warp thread alternating over one weft and under the next | Firm, balanced, often crisp and predictable | Stability, ease of sewing, clean shape retention | Can feel stiffer and less drapey |
| Twill weave | Offset bindings such as 2/1, 2/2 or 3/1 create a diagonal line | Softer movement, visible rib or diagonal texture | Drape, wear resistance, a more forgiving hand | Can be heavier and more complex to produce |
| Satin weave | Long floats with fewer visible interlacings, often 4 or more before a tie-down point | Smooth, fluid and reflective on the face | Lustre, softness, elegant drape | Snags and surface scuffing show more quickly |
My shortcut is simple: choose plain when stability matters most, twill when you want movement without losing substance, and satin when the surface itself is part of the design. From there, the useful details live in the variants and derivatives.
How plain weave builds the most stable fabrics
Plain weave is the oldest default for a reason: every warp yarn goes over one weft yarn and under the next, then the sequence reverses. That simple 1/1 structure creates plenty of interlacing points, which is why plain-weave cloth tends to hold shape, resist skew and stay easy to handle at the cutting table. The trade-off is that it often feels firmer and less drapey than people expect.
When I need a fabric that behaves predictably, I look at plain weave first. It is common in chambray, broadcloth, canvas, sheeting, poplin, muslin and voile, but the hand can swing from crisp to airy depending on yarn choice and finish.
- Basket weave groups two or more yarns together, so the cloth gains texture and a softer drape, but it becomes less stable and can fray more easily.
- Oxford is often a 2x1 basket variation used for shirting; a finer warp and heavier filling yarn give it a relaxed but still structured look.
- Rib weaves such as grosgrain or ottoman create a stronger ridge effect, which is useful when you want visible texture rather than a flat surface.
These are not decorative accidents. They are deliberate ways of tuning the plain weave formula, and they lead naturally into the more directional behaviour of twill.
Why twill feels sturdier and more forgiving
Twill keeps the yarns moving, but not in the strict back-and-forth rhythm of plain weave. Instead, the binding points shift with each pick, creating a diagonal line that you can usually spot as a twill rib. Because the interlacings are less frequent, the cloth tends to feel more supple and often wears in a more forgiving way than plain weave.

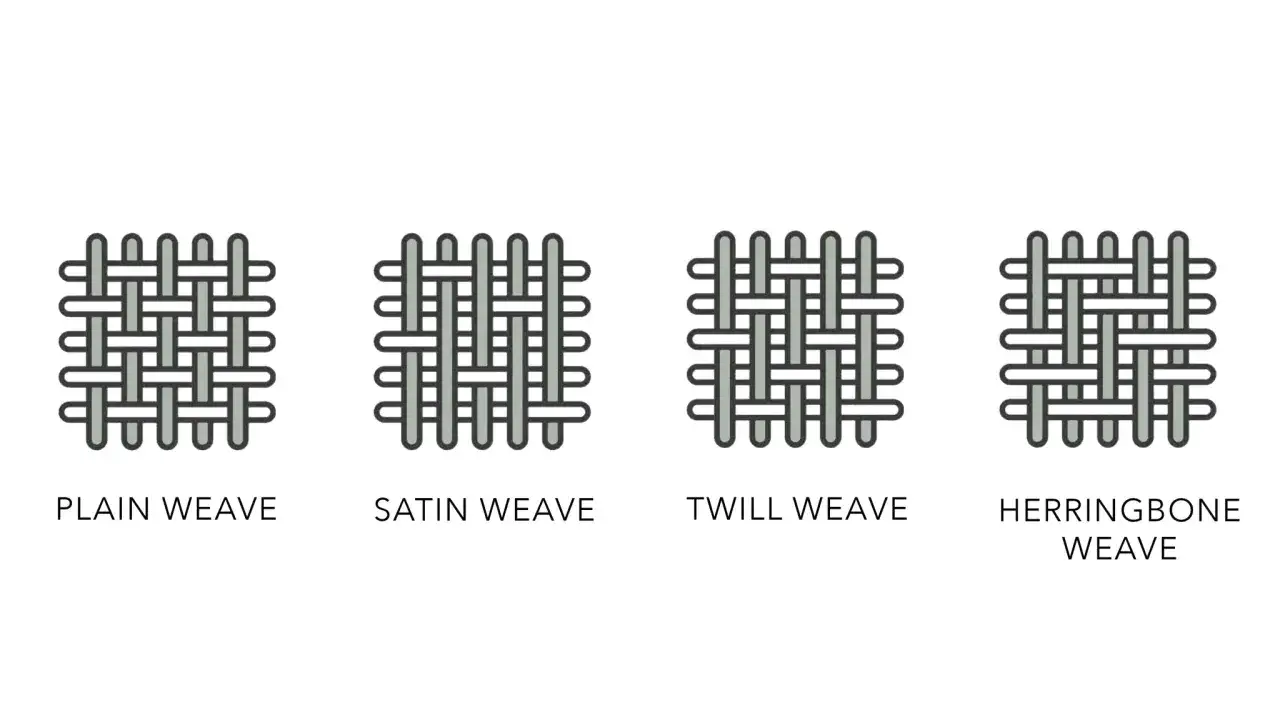

That is why twill shows up so often in denim, chino, gabardine and many suiting fabrics. A 2/1 twill gives a clear diagonal; a 2/2 or cross twill balances face and back more evenly; a 3/1 twill pushes further toward durability and a heavier bottom-weight feel. Herringbone and broken twill simply reverse or interrupt the diagonal, which adds visual interest without giving up the basic advantages.
I also watch the loom setup here. More complex twill structures need more harnesses, and that usually means more production complexity. For the buyer, that shows up less as abstract theory and more as a fabric that feels stable, wears well and still moves with the body.
Where satin works and where it disappoints
Satin is built to hide the intersection points. The yarns float over several others before tying down, which gives the cloth a smooth face, a softer touch and the kind of light reflection people often call lustre. The back usually looks and feels different, and that difference is part of the structure rather than a defect.
That makes satin a strong option when you want fluidity, sheen or a refined surface for linings, lingerie or evening pieces. It is also the weave I treat most cautiously in high-friction garments, because those long floats are easier to snag, scuff and abrade. If the garment has to survive daily rubbing against bags, seatbelts or rough surfaces, satin needs a very good reason to be there.
Satin can be woven from almost any fibre, but the effect is most dramatic with silk and silk-like yarns. There are sturdier versions too, such as duchesse satin, where extra warp yarns add body and a denser hand. Even so, the basic rule stays the same: satin gives you surface drama, but it asks for more care.
The specialty structures that add texture, openness or pattern
Once the three basic families are clear, the rest of the conversation is about function and surface character. I usually group these structures by what they change on the cloth rather than by how exotic their names sound.
- Leno or gauze uses a twisted doup end to hold open spacing without losing stability, so it works well for fine, airy fabrics that still need some structure.
- Jacquard uses individually controlled warp threads, which lets the fabric build complex motifs such as damask or brocade directly into the weave.
- Dobby works with grouped yarns, so it is better for smaller geometric repeats than for large, intricate scenes.
- Crepe-like structures reduce obvious diagonal lines and long floats, creating a grainier, less glossy surface when subtle movement is the goal.
These are worth knowing because they answer a different design brief. The question is not only what the fabric looks like, but what it should do when it is worn, washed and handled.
How I would choose the right weave for a fabric purchase
When the label is vague, I read the weave like a performance spec. I am looking for drape, stability, abrasion resistance, opacity, fray risk and how much the fabric will forgive a sloppy cut or heavy use. Fibre still matters, but weave usually tells me how the cloth will behave before I even touch it.| What you need | Weave to start with | Why it fits | What to watch |
|---|---|---|---|
| Crisp shirts or structured tops | Plain weave or Oxford | Stable, clean seams and good shape retention | Can feel firm if the yarns or finish are too dry |
| Jeans, chinos or everyday trousers | Twill | Good wear, better movement and a more forgiving surface | Heavier twills can feel warm or bulky |
| Eveningwear, linings or fluid blouses | Satin | Smooth face, soft sheen and elegant drape | Snags and scuffs show quickly |
| Casual texture or upholstery feel | Basket weave or rib | Visible texture and a more relaxed hand | Usually less stable than plain weave |
| Airy layers, scarves or summer wraps | Leno or gauze | Open structure with surprising stability | Not the best choice for hard wear |
One mistake I see often is confusing weave with fibre. A cotton satin and a silk satin can both look luxurious, but they will not drape or wear the same way. Another common mistake is assuming thread count alone tells the whole story. It does not. The weave pattern, yarn choice and finish together shape the result.
What I check when the label only tells part of the story
When I do not have much information, I fall back on three cues: the repeat, the face and the way the edge behaves. If the cloth looks evenly balanced and stable, I think plain weave. If I can see a diagonal line, I start thinking twill. If the surface is smooth and reflective on one side but not the other, satin is likely part of the answer.
- Look for the repeat because it tells you whether the cloth is built for balance, movement or surface shine.
- Check the back because a very different back often signals satin or another structure with pronounced floats.
- Watch the edge because open or grouped constructions usually fray faster than tight plain weaves.
- Match the weave to the job because beauty and durability rarely peak in the same structure at the same time.
In practice, the fastest way to choose well is to combine weave with touch: study the repeat, feel the face and back, and ask what the fabric has to survive. When those answers line up, the cloth usually behaves exactly the way you hoped it would.
